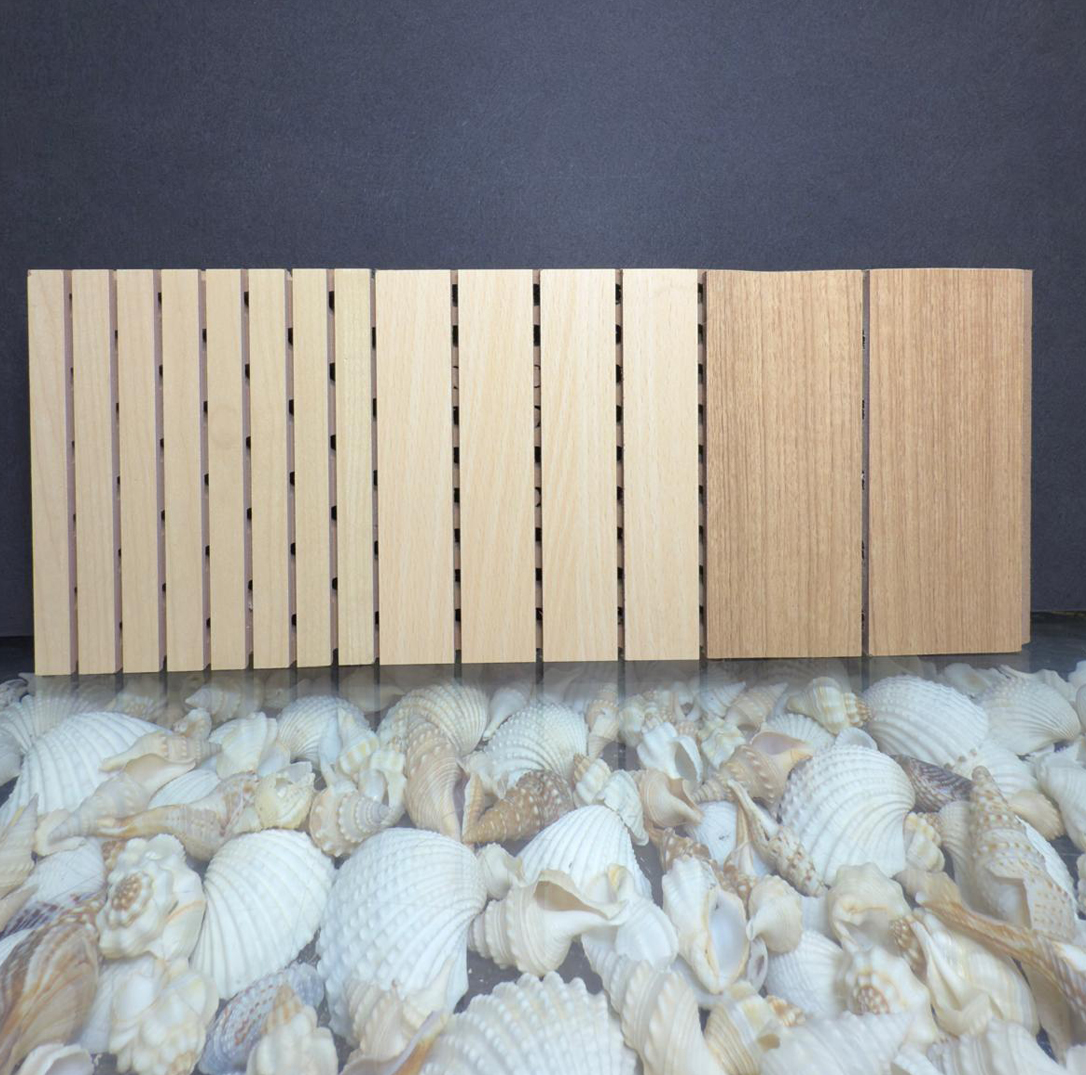

Fibrecrete Striaco are Helmholtz Fluted Wooden Acoustic Panel made of Prelaminated Fibre Boards used for acoustic treatment for absorbing sound, controlling echoes & improving sound clarity.
Striaco wooden slats are available in plenty of color options & pattern.
| MDF | Medium Density Fibre Board [750 kg/cuM] |
|---|---|
| HDMR | High Density Moisture Resistant Fibre Board [850 kg/cuM] |
| Size | 2440 x 192 x 16mm, 2440 x 131 x 16mm, 2440 x 128 x 16mm |
Providing & fixing of 16mm Fibrecrete Striaco in size: 2440 x 128mm made from HDMR pre laminated Fibre boards of approved design & shade of density 850 kg/cuM with linear grooving on front side (pitch 16mm or 32mm), 8-10mm perforation at the back covered with black acoustic fleece and having tongue & groove edges.
Fibrecrete Striaco are to be fixed with it’s tongue & groove system to G.I. side & centre brackets which will be fixed to Aluminium ‘U’ channel of 18mm height, 25mm width having flanges of 7mm on both sides. The top surface of the ‘U’ channel is to be screw fixed to the wall horizontally after levelling. The brackets will be twisted & fixed to the flanges of the ‘U’ channel.
Fibrecrete Striaco are to be fixed with it’s tongue & groove system to G.I. side & centre brackets which will be fixed to Aluminium ‘U’ channel of 18mm height, 25mm width having flanges of 7mm on both sides. The brackets will be twisted & fixed to the flanges of the ‘U’ channel. The top surface of the ‘U’ channel is to be screw fixed horizontally on 50x50mm G.I. section/ wooden batten framework making a grid of 610x610mm c/c, screw fixed directly to the wall in level. Effusio wool of 50mm thick having density of 1000 GSM is to be inserted with in the framework.
| Range | MDF – Medium Density Fibre Board [750 kg/cuM] HDMR – High Density Moisture Resistant Fibre Board [850 kg/cuM] |
|---|---|
| Size | 2440 x 192 x 16mm 2440 x 131 x 16mm 2440 x 128 x 16mm |
| Front side | Linear Grooving [16mm pitch; 32mm pitch, 64 pitch] |
| Back Side | Perforation 8-10mm Back Side covered with Black Acoustic Fleece |
| Long Edge | Tongue & Groove system |
| Installation | With ‘U’ Aluminium Channel & G.I. side & centre brackets |
| Area of Application: | Auditorium, Banquet Halls, Seminar Halls, Concert Halls, Studios, Cinema Theatres, Workspaces etc |
