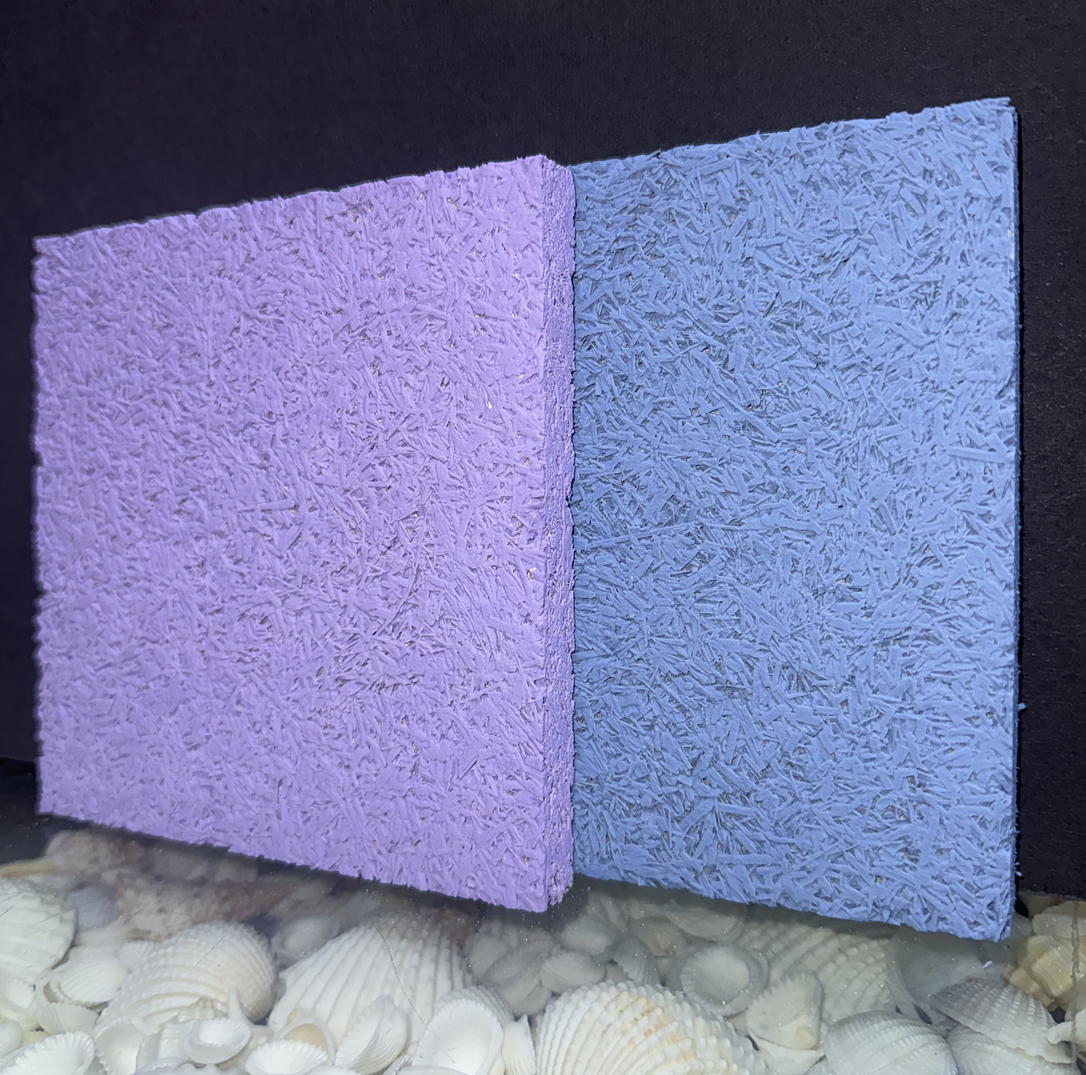

Fibrecrete Microfibre Tiles are made of magnesite binded Pine wood Slivers. Microfibre Tiles help absorb sound & reduce noise.
Microfibre tiles are ideal for Pubs, Resto bars, Discotheques, Banquet Halls, Concert Halls, Convention centres.
| Material | Magnesite Binded Pine Wood Fibres |
|---|---|
| Category | Fine [1mm fibre width] |
| Type | Natural [Long Pine Wood Fibres] |
Providing & Fixing Suspended ceiling with Magnesite binded 15mm thick Fibrecrete ‘Microfibre’ Acoustic Tiles made of Pine wood slivers in size: 1200 x 600mm weighing 9 kg/Sqm. in choice color having a NRC of 0.45. The tiles will be screw fixed to GI Frame work comprising of Ceiling Section, Intermediate Channel, Perimeter, L Angle fastened & hanged suitably from the ceiling with dash fasteners, L cleats, Adjuster Clips & Wire. Perimeter Channel is to be screw fixed to the wall, support for the intermediate channel is to be taken at every 1200mm, Ceiling Section is to be fixed to the intermediate channel at 600mm c/c. The entire framework should be in perfect line & level.
Providing & fixing with Magnesite binded 20mm thick Fibrecrete ‘Microfibre’ Acoustic Tiles in size: 1200 x 600mm weighing 12 kg/Sqm. in choice color to be Screw fixed @ 200mm vertically/ horizontally @ 610mm c/c on GI metal frame of 50 x 50mm comprising of Floor & Stud Channel making a grid of 600 x 600mm c/c, backed with 50mm Effusio wool 1000 GSM which will comprise of NRC 0.80. The frame is to be made in proper line after leveling. All joints of the tiles must in perfect line and level. Top Finish – Spray Paint/ Non Woven Fabric Pasting/ Fabric Stretch System.Top Finish – Spray Paint/ Non Woven Fabric Pasting/ Fabric Stretch System.
| Fire Tests | Tested by CBRI Roorkee, Uttarakhand. |
|---|---|
| Ignitability | BS 476 part 5 - ‘P’ not easily ignitable |
| Fire Propagation | BS 476 part 6 – Index ‘I’ = 4.11 |
| Surface Spread of Flame | BS 476 Part 7 – Class 1 |
| Non Combustibility | ISO 1182 – Avg. mass loss = 52.27% |
| Weathering Test | Tested by SIIR, Delhi. ‘NO delamination and Damage observed after the Test as per IS 9307’. |
| Conforms to | :is 3308 |
| Base Material | Magnesite binded Pine wood fibre Slivers. |
|---|---|
| NRC | 0.80 [as per IS: 8225 – 1987 equivalent to ISO 354 -1985 & ASTM 423 – 90a] |
| Color | Raw – Off white + 36 Color options. [Also available in custom colors] |
| Purpose | Acoustic & Thermal Insulation |
| Size | 1220x610mm, 1200x600mm, 600x600mm, 595x595mm |
| Easy to | Cut with circular saw or hand saw at site |
| Thickness | 15mm 20mm 25mm |
| Application | False Ceiling, Wall Paneling, Partitions |
| Ineffective | Fungus, Termites |
| Weight | 9 kg/Sqm. 12 kg/Sqm. 15 kg/Sqm. |
| Edge | Square, Chamfer, Tegular, Kerf |
| Application | Installation |
|---|---|
| False Ceiling | Lay – in Grid System made of T24 Powder
coated Galvanized Iron Tee grid & Angle,
suspended from the Roof Screw Fix System on Galvanized Iron Frame suspended from the Roof |
| Wall Paneling | Screw Fix System on Galvanized Iron Frame ‘H’ Spline System |
