Fibrecrete Acoustic Baffles are designed for an effective acoustic treatment which help absorb sound and enhance speech clarity. They are suspended/ hanged vertically from the ceiling.
This makes them an ideal option for spaces that require a quiet environment, have limited wall space, or need materials out of reach.
Fibrecrete Acoustic Baffles are an excellent choice for use in spaces such as conference rooms, libraries, hospitals or open-plan spaces to reduce noise and increase productivity.
Providing & fixing 50mm Fibrecrete Ceiling Baffle made of Natural wood fibre Acoustic Panel in size 1200 x 300mm in choice color. The Baffle is designed with two nos. of screw coupler inside the thickness of the panel on one side @ a distance of 500mm from centre.
‘J’ hook is to be fixed to the coupler. fastener with ‘J’ hook to be installed to the RCC roof at desired distance. Acoustic Baffle to be hanged with the support of chain
Dash fastener to be installed to the RCC roof at desired distance. 6mm threaded rod to be fastened to the fastener. Acoustic Baffle to be installed by fastening the threaded rod to the panel couplers.

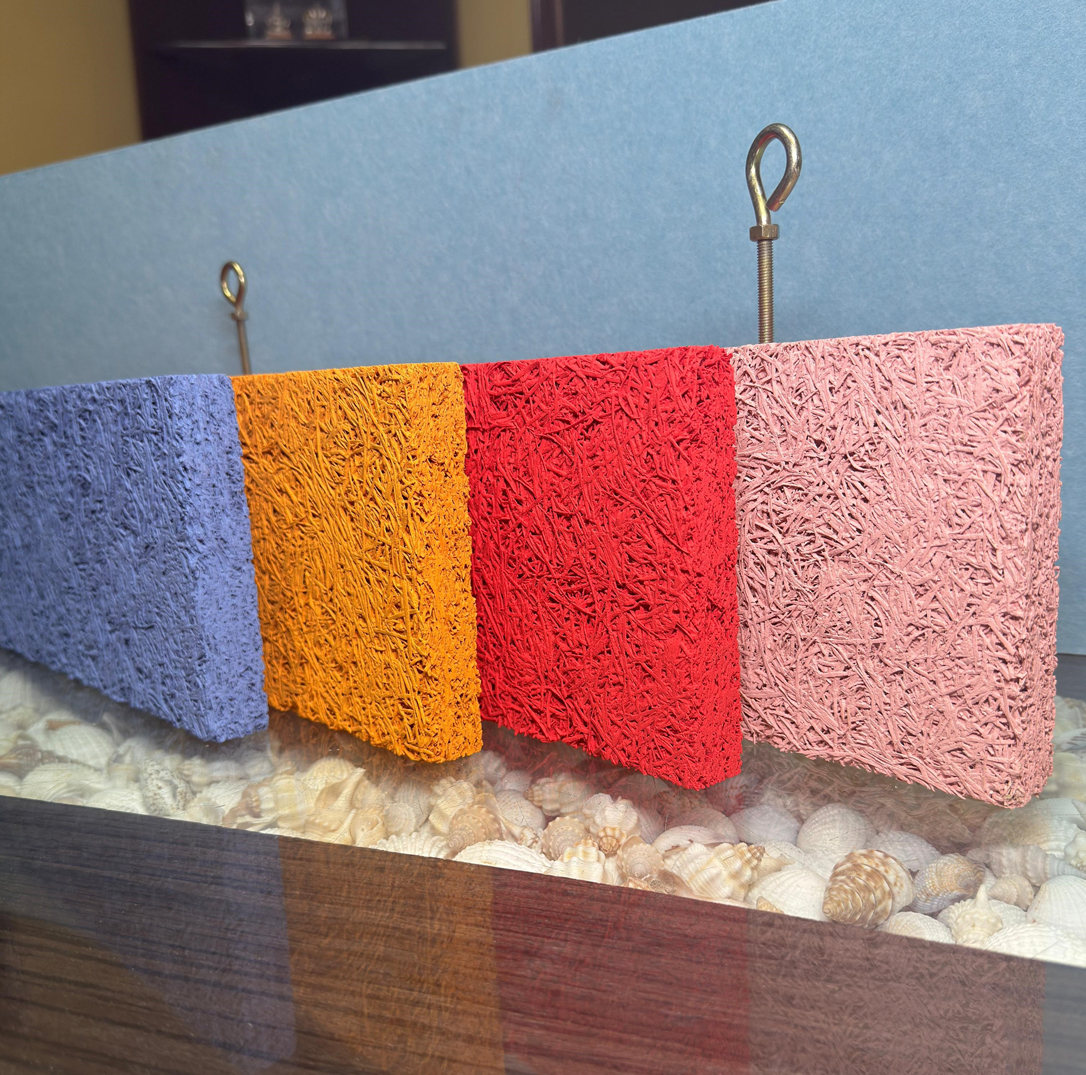

Eye hook to be fixed to the coupler. ‘S’ hook to be attached to the eye hook & Acoustic Baffle to be hanged with support of chain looped or fixed to the structure.
Installation should be in proper line & level.| Size | 1200 x 600mm; 1200 x 300mm |
|---|---|
| Thickness | 25mm, 40mm, 50mm |
| Product | Natural Acoustic Panel |
| Finish | Color on all sides |
| Application | Hanging Ceiling |
